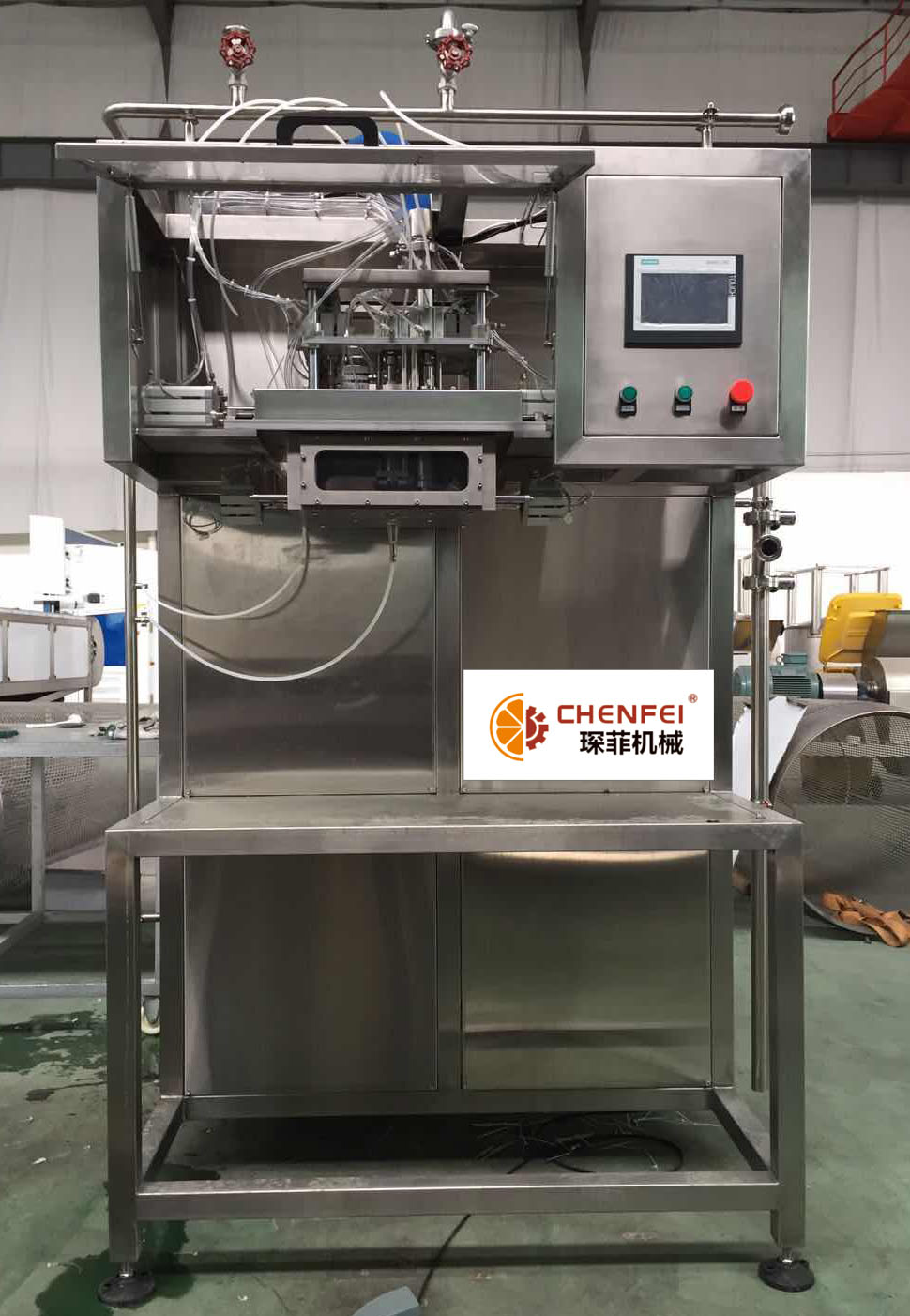

Single Head BIB Aseptic Filling Machine 2L/bag and 600 L/Hour
Product introduction
We adopt the Italian technique and design it for the filling volume
of 1-30L especially ourselves. It is full automatically, high fill
efficiency and easy operation by one person. The whole machine is
made of the high quality of 304L/316L, the pipe arrangement is
quite reasonable without dead corner. The circulated steam and
compressed air will be discharged from the corresponding pipes.
Scope of application
Suitable for filling viscous or non-viscous fluids such as fruit
juice, concentrated juice, jam, fruit granules (fruit granules),
aseptic filling, beverage puree, syrup, dairy products,
pharmaceutical or other concentrated products. Filling and filling
of bacteria. It is widely used in the aseptic packaging of fluid
foods such as juice, pulp and jam.
Equipment summary
1. The product is controlled by human-machine interface and PLC, which
makes the operation convenient and intuitive, and has
self-detection and protection functions.
2.metering system: flow meter measurement, measuring parts brand
using Germany E + H metering accuracy, stable filling volume error
≤ 0.5%).
3.the whole machine uses SUS304 or 316L, clean and beautiful, in
line with food hygiene requirements
4. moving parts plus steam barrier and sealed sterile room to
ensure its sterility.
5,.The filling chamber is uniquely designed to avoid condensation
and water leakage.
6.reliable bag mouth design, to ensure smooth operation of the
equipment, does not hurt the bag mouth.
Property description
| Equipment Name | Single head BIB aseptic filling machine |
| Filling accuracy | filling volume ±0.5% |
| Bag mouth standard | 1 inch bag mouth (designed according to sample bag) |
| Compressed air | 6-8bar 18NL/min |
| Steam consumption | 20kg/h |
| Steam pressure | 0.2-0.3mpa |
| Metering method | flow meter |
Product Details
Question and answer
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on
according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden
cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
